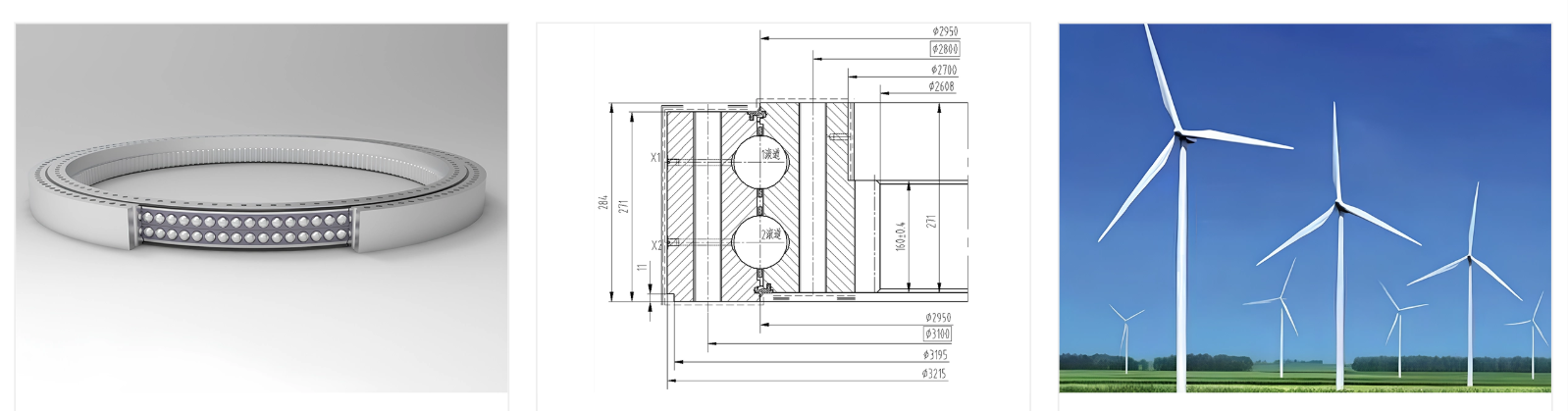

Slewing Ring for Wind Power 3.2MW Pitch Control LQNA2950-75F

Overview

Designed to meet the extreme working conditions of wind power generation, including long-term outdoor operation, variable wind load impact, and high maintenance-free operation requirements, this wind turbine pitch slewing bearing provides precise blade angle adjustment, stable rotational support, and superior anti-fatigue performance. It is the core supporting component for wind turbine original equipment manufacturers, wind farm project developers, renewable energy equipment operators, and professional power generation maintenance service providers.

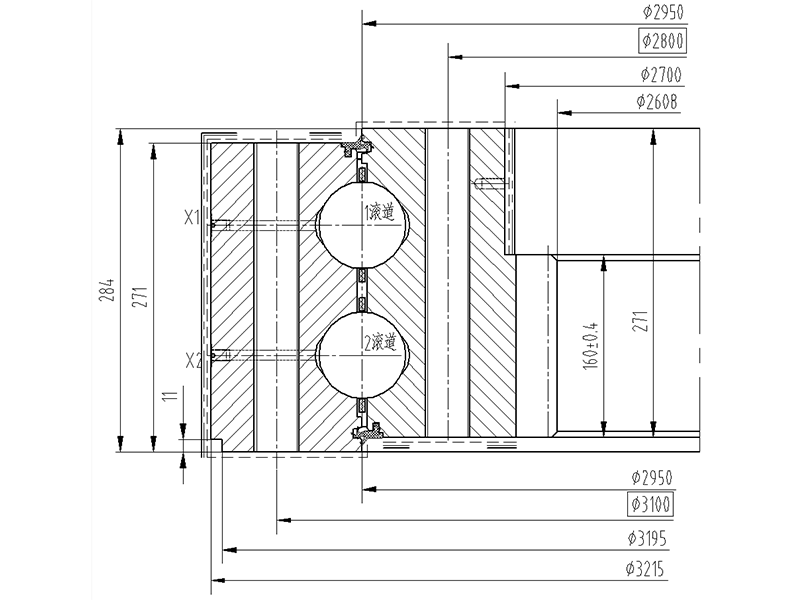

Technical Specifications & Dimensional Parameters

Key Features & Performance Advantages

Zero-Clearance High-Rigidity Design for Pitch Control Accuracy

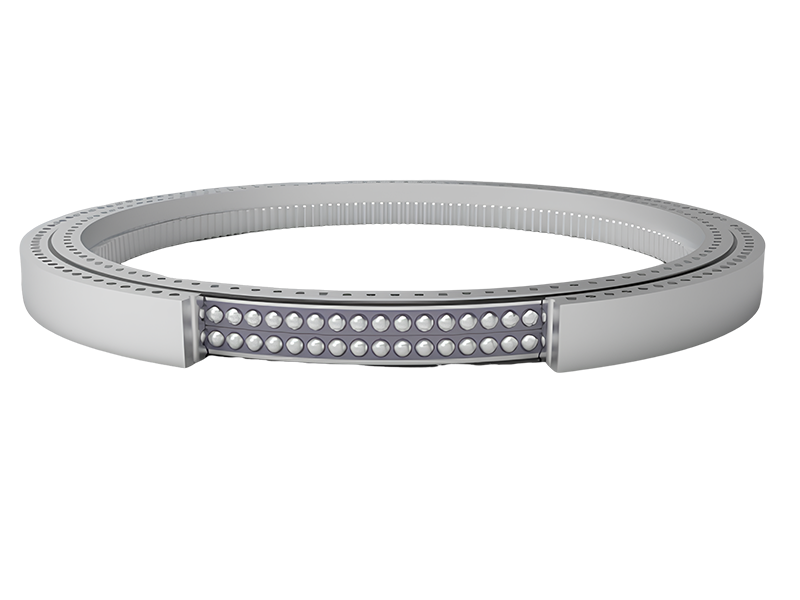

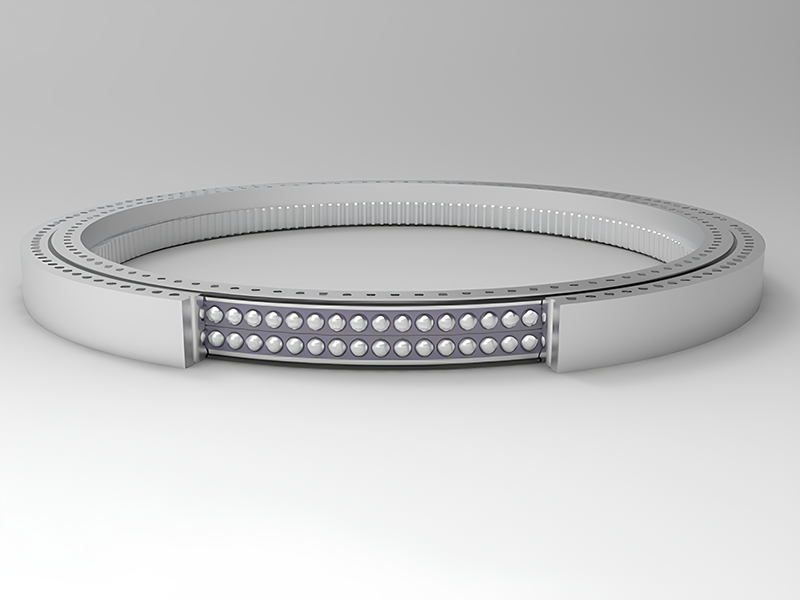

The 3.2MW wind power slewing ring adopts a double-row four-point contact ball structure with professional zero-clearance design, eliminating rotational backlash during blade pitch adjustment, ensuring micron-level accurate control of blade angle, and maximizing wind energy capture efficiency and power generation stability of the wind turbine.

Extreme Environmental Adaptability & Long-Term Reliability

Equipped with a four-lip composite sealing structure, it effectively blocks dust, moisture, salt spray and other corrosive media, fully adapting to harsh outdoor, coastal and offshore wind farm environments. The plastic-coated cage provides excellent corrosion resistance, while reducing operational noise and vibration, ensuring long-term stable operation of the pitch system.

Ultra-Strong Load-Bearing Capacity for Variable Wind Loads

The optimized double raceway design can simultaneously bear complex combined loads such as huge axial load, radial load and overturning moment generated by extreme wind speed impact, ensuring the safety and stability of the wind turbine under typhoon, strong wind and other extreme weather conditions.

Applications & Compatible Equipment

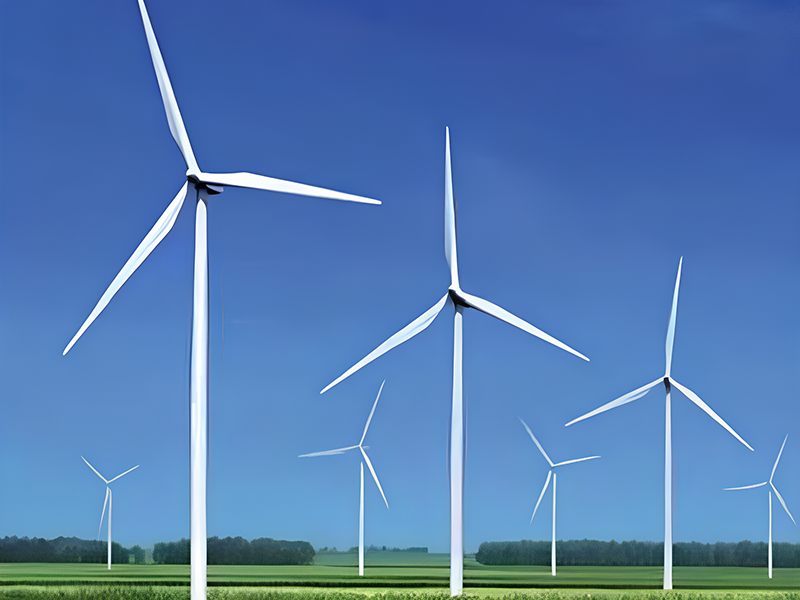

This wind power generation slewing ring is specially designed for the pitch control system of 3.2MW onshore and offshore wind turbines, and can also be adapted to 3MW-3.5MW wind turbine models with matching installation dimensions and load requirements, serving the full life cycle of wind power projects from initial construction to later operation and maintenance.

Installation, Operation & Maintenance Guidelines

Before installation, inspect the flatness of the turbine hub mounting surface, remove all burrs and contaminants, and ensure the mounting base meets the design rigidity requirements;

Use a torque wrench to tighten mounting bolts in a symmetrical cross sequence, strictly following the specified torque value to avoid uneven stress;

Fill with special wind power grease before commissioning, and perform regular grease replenishment and seal inspection according to the wind farm maintenance manual;

Avoid frequent overload impact beyond the design load range, and regularly monitor the operating temperature and vibration of the slewing ring.

Customization & Bulk Procurement Solutions

We provide targeted customization services for wind turbine manufacturers, wind farm project contractors, and bulk industrial purchasers, including adjustment of slewing center diameter, optimization of raceway structure, upgrade of anti-corrosion and sealing solutions for offshore wind farms, and adaptation for different MW class wind turbines. For bulk OEM supporting and project centralized procurement, we provide stable mass production capacity, strict batch quality control, professional on-site technical guidance, and exclusive bulk procurement preferential policies.

FAQs About LQNA2950.75F Wind Turbine Slewing Ring

Can this slewing ring be used in offshore wind farm projects?

Yes, the LQNA2950.75F pitch slewing bearing can be upgraded with a special anti-corrosion sealing system and surface treatment according to offshore working conditions, fully adapting to high salt spray and high humidity offshore environments.

What is the maintenance cycle of this wind power slewing ring?

Under normal onshore wind farm operation conditions, the regular maintenance cycle is 6 months, and the interval can be adjusted according to the actual operating environment and load conditions.

Does this slewing ring support customized modification for other MW class wind turbines?

Yes, we can provide full customized design and production services for 2MW-5MW wind turbine pitch systems according to customers' actual load requirements and installation dimensions.
