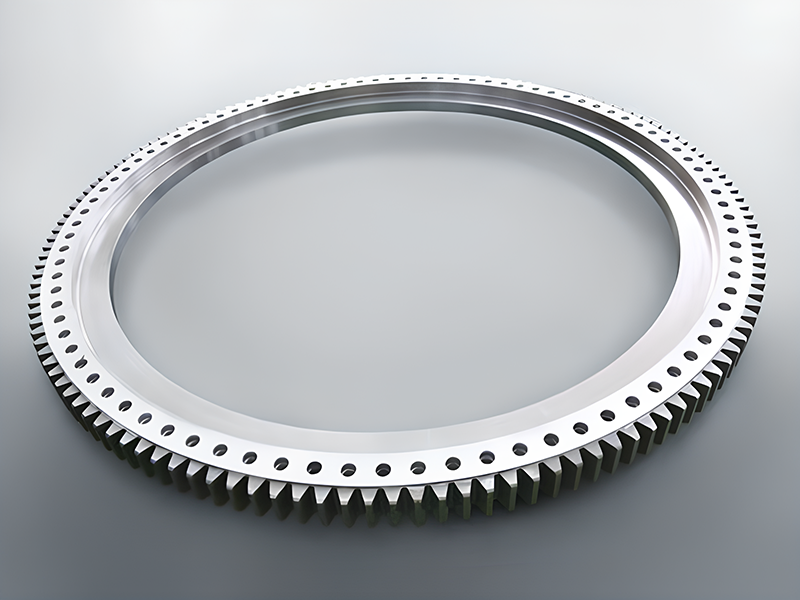

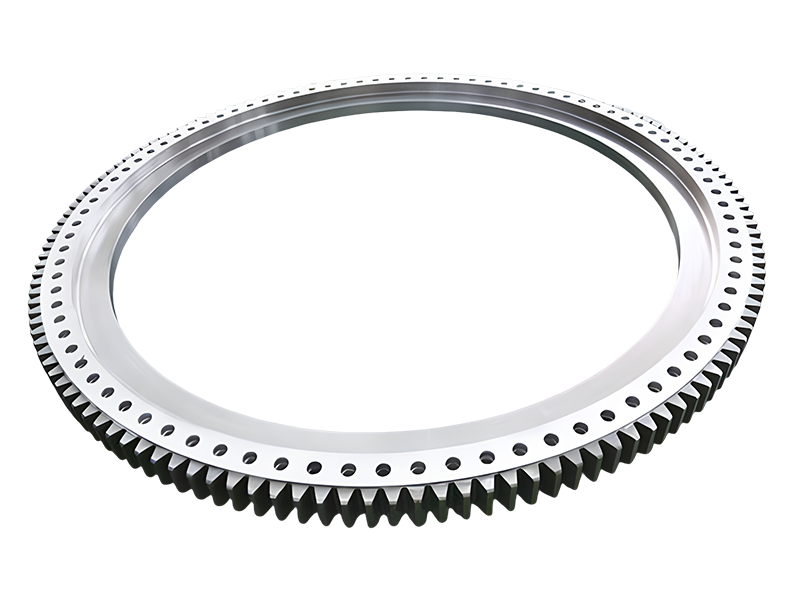

Slewing Ring for Wind Power 8MW Yaw System 3500-16-125-144

Overview

Designed to withstand extreme loads and harsh operating conditions of onshore and offshore wind farms, this component delivers reliable nacelle positioning control to maximize wind energy capture efficiency. Built for wind turbine manufacturers, renewable energy project contractors, and wind farm maintenance service providers, it integrates advanced structural design to optimize yaw system performance while cutting long-term operational costs.

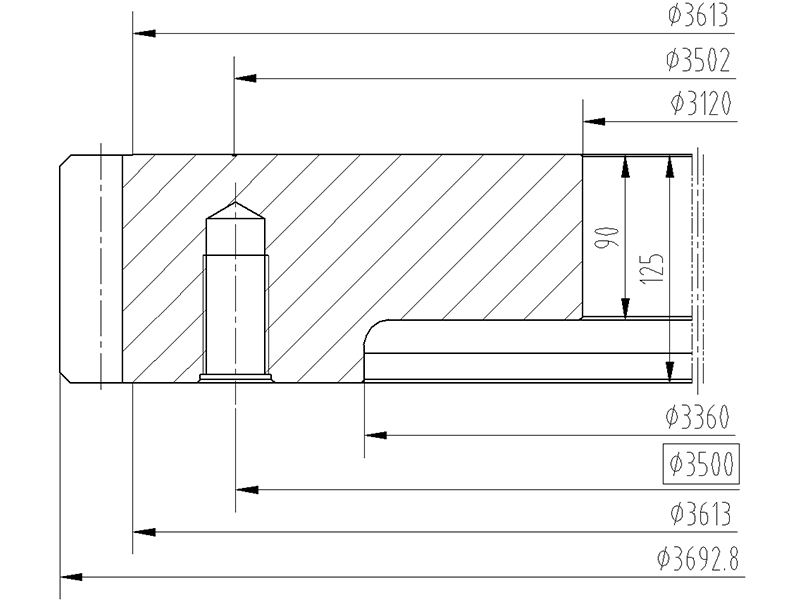

Technical Specifications & Dimensional Parameters

Key Features & Performance Advantages

Innovative sliding instead of rolling working mode: This groundbreaking design eliminates the complex double-row ball raceway structure of traditional yaw bearings, enabling a lighter, more compact yaw system that fits perfectly into 8MW wind turbine nacelle layouts without compromising load-bearing capacity.

Streamlined structure with reliable quality control: The integrated wind power yaw gear ring features a simplified structural design, which greatly improves the controllability of manufacturing precision, material performance, and finished product consistency, meeting the strict certification requirements of the global wind power industry.

Extreme load resistance and stable positioning: Bolted to the tower top flange and meshed with 5-8 yaw drives via external gears, it works with yaw drive brakes and calipers to maintain absolute nacelle and rotor stability even under extreme torque loads, preventing offset in high wind, typhoon, and other harsh conditions.

Outstanding full-life cost advantage: Unlike traditional yaw bearings that require full replacement after raceway wear, our 8MW wind turbine yaw slewing ring only needs targeted replacement of lower and radial friction plates during maintenance, drastically reducing overall system maintenance costs and wind farm downtime.

Applications & Compatible Equipment

This heavy-duty yaw slewing ring for 8MW wind turbines is purpose-built for 8MW onshore and offshore wind turbine yaw systems. It is fully compatible with mainstream 8MW wind turbine models from leading global manufacturers, and is suitable for new wind turbine assembly, wind farm repowering projects, and faulty yaw system component replacement. It adapts to extreme operating environments, including high-altitude wind farms, coastal offshore wind farms, and areas with frequent extreme weather.

Installation, Operation & Maintenance Guidelines

Installation: Secure the yaw gear ring to the tower top flange with high-strength bolts, ensure precise meshing between the external gear and yaw drive pinions, and align the three core surfaces with corresponding friction plates during assembly.

Operation: Ensure synchronous operation of matched yaw drives during yaw adjustment to avoid uneven gear wear, and activate the yaw brake system promptly after positioning to maintain stable nacelle fixation.

Maintenance: Conduct regular inspections of friction plate wear and gear meshing condition, replace worn friction plates in a timely manner; no full slewing ring replacement is required for normal wear, simplifying maintenance operations.

Customization & Bulk Procurement Solutions

We provide tailored solutions for wind turbine manufacturers and renewable energy project contractors, including custom gear parameters, material upgrades, and anti-corrosion surface treatment adjustments to meet specific project requirements. For bulk procurement orders, we offer flexible production schedules, competitive bulk pricing, and full technical support from prototype testing to batch delivery, ensuring seamless matching with your production line and project timeline.

FAQs About 3500.16.125.144 8MW Wind Turbine Yaw Slewing Ring

Is this yaw slewing ring compatible with offshore 8MW wind turbines?

Yes, it can be upgraded with anti-corrosion and salt-spray resistant surface treatments to adapt to harsh marine offshore environments.

What is the core maintenance difference between this product and traditional yaw bearings?

Unlike traditional bearings that require full replacement after raceway wear, our product only needs regular friction plate replacement, reducing full-life maintenance costs by more than 60%.

Can you provide custom gear modification services?

Yes, we offer custom gear tooth profile modification, accuracy grade adjustment, and other custom services according to your yaw drive matching requirements.
