To determine the quality of a Single-Row Ball Slewing Bearings, you must systematically evaluate raw material metallurgy (utilizing certified 50Mn or 42CrMo steel alloys), verify the depth and continuity of raceway induction hardening (ensuring a surface hardness profile between 55 and 62 HRC), audit internal geometric clearances and manufacturing runout tolerances according to ISO or AGMA standards, assess sealing efficiency against particulate ingress, and confirm dynamic performance testing under simulated maximum tilting moment loads.

This comprehensive technical analysis explores the complex engineering parameters that determine the performance capabilities and overall service life of modern industrial Single-Row Ball Slewing Bearings. By analyzing raw material procurement, manufacturing accuracy, surface preservation, and application-specific configurations, this document provides procurement managers, quality assurance specialists, and design engineers with actionable technical insights. Through structured data comparisons, engineering tolerance frameworks, and detailed breakdown methodologies, the following sections will clarify how to successfully execute quality audits and evaluate supplier capabilities effectively.

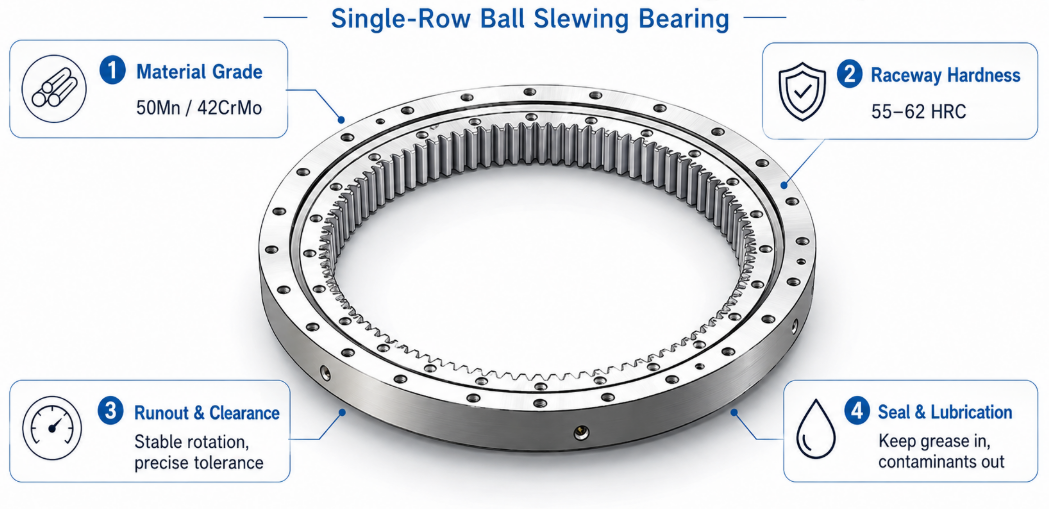

To help navigate the highly technical inspection guidelines presented in this procurement article, the structural roadmap below provides an overview of each assessment criteria. Each section addresses a specific engineering challenge associated with verifying Single-Row Ball Slewing Bearings structural integrity and performance parameters across global distribution networks.

Material Grade Verification

Quality verification for a Single-Row Ball Slewing Bearings begins with comprehensive material grade verification, confirming that the chemical composition and metallurgical structure of the forged rings meet international engineering standards for heavy-duty load distribution.

The raw material selected for manufacturing Single-Row Ball Slewing Bearings serves as the core foundation for the component's absolute load capacity, fatigue limits, and resistance to structural distortion under extreme operational pressure. Premium industrial manufacturers utilize high-grade medium carbon steel or alloy steel forgings, primarily 50Mn or 42CrMo, which undergo precise refining processes to eliminate non-metallic inclusions and structural defects. Lower-quality suppliers often utilize non-verified steel scrap or inferior carbon grades that lack the required alloy homogeneity, resulting in localized weak points that fracture rapidly under severe dynamic stress profiles. To accurately determine component quality, industrial procurement teams must mandate the provision of certified material test reports that trace the heat number of the forging directly back to the original steel mill source.

When analyzing the structural capabilities of different alloy choices for Single-Row Ball Slewing Bearings, metallurgical engineers evaluate hardenability, impact toughness, and tensile yield strength across various operating temperature ranges. For instance, while 50Mn steel delivers exceptional surface hardness and wear resistance for conventional industrial equipment, 42CrMo chrome-molybdenum alloy steel provides superior deep-hardening characteristics and fatigue resistance, making it suitable for wind energy systems and cold-weather offshore marine installations. Evaluating these metallurgical properties ensures the selected Single-Row Ball Slewing Bearings configuration can withstand long-term rotational stress without experiencing material yield failure or severe geometric warping over time.

To ensure proper component selection based on mechanical properties, engineers use the following technical comparison table to evaluate structural material grades during initial engineering reviews:

Key Material Assessment Steps

1. Verify the Mill Test Certificate details against chemical composition standards via independent laboratory testing.

2. Evaluate the ultrasonic testing documentation to ensure the raw forging is entirely free of internal cracks, shrinkage cavities, and gas porosity.

3. Assess the grain size refinement level to confirm optimal microstructure uniformity following initial normalization heat treatments.

Raceway Induction Hardening Integrity

Evaluating raceway induction hardening integrity requires verifying that the localized heating and quenching process achieves a uniform surface hardness profile between 55 and 62 HRC along with sufficient effective case depth to manage extreme contact pressures.

The internal raceway of any Single-Row Ball Slewing Bearings represents the primary contact zone where rolling elements transmit heavy axial forces and overturning moments between the stationary and rotating structural rings. Because these contact zones experience intense localized compressive stress, they must undergo specialized induction hardening treatments to increase surface yield strengths without making the underlying core material brittle. A high-quality Single-Row Ball Slewing Bearings features a precisely controlled hardened layer that prevents subsurface fatigue cracks, spalling, and indentation wear from heavy shock loads. Poorly controlled induction processes lead to inconsistent hardness depths, soft spots along the path, or excessive residual tensile stress that causes sudden cracking under normal working conditions.

A critical technical detail in the manufacturing of Single-Row Ball Slewing Bearings is the management of the induction hardening stop zone, commonly referred to as the soft zone or soft spot. Because induction heating coils cannot perform a perfectly continuous circle without overlapping the start and finish positions, a small region of the raceway remains unhardened to prevent thermal cracking. High-quality manufacturers precisely identify and mark the exact position of this soft zone on the exterior surface of the ring, allowing installation technicians to position this region out of the maximum load zone during machine assembly. Investigating the hardness profile, case depth consistency, and soft spot management is a primary requirement for determining the overall performance lifespan of Single-Row Ball Slewing Bearings.

When selecting high-performance machinery parts, buyers often choose heavy-duty equipment like the 20 ton Slewing Bearing for Excavator, which utilizes precise raceway induction hardening technologies to manage severe shock loads during heavy construction and earthmoving applications.

Critical Hardening Quality Parameters

• Surface Hardness Value: Must consistently measure within the 55 to 62 HRC range for premium steel alloys to limit wear.

• Effective Hardening Depth: Must extend between 3mm and 6mm depending on ball diameter to support heavy sub-surface stresses.

• Soft Zone Positioning: Must be clearly stamped on the non-geared ring face to ensure correct orientation away from peak force arcs.

Geometric Clearances and Runout Tolerances

Determining geometric quality requires measuring internal clearance values and radial/axial runout limits to verify the Single-Row Ball Slewing Bearings provides uniform load distribution without experiencing localized binding during rotation.

Internal clearance refers to the total amount of free movement between the internal rolling balls and the matching curved raceway profiles when subjected to light alternating verification forces. For Single-Row Ball Slewing Bearings, maintaining the correct internal clearance is crucial because it balances smooth rotational friction against structural stiffness under changing overturning moments. If the internal clearance is too tight, thermal expansion during continuous operation can cause structural binding, accelerating wear and increasing structural drive torque requirements. Conversely, excessive internal clearance reduces the number of load-carrying balls in the active zone, concentrating forces on fewer elements and leading to rapid deformation of the raceway path.

Axial and radial runout tolerances define the physical limits of geometric deviation allowed during a complete 360 degree rotation of the bearing assembly. High-precision manufacturing processes ensure these runout variations remain minimal, reflecting accurate machining of the mounting faces, pilot diameters, and internal raceway paths. Large runout variations indicate inconsistent machining or warping during heat treatment, causing uneven load sharing among the internal rolling elements and generating vibration during machine operation. Sourcing quality Single-Row Ball Slewing Bearings requires checking that these runout metrics strictly comply with ISO precision classes or equivalent global standards.

The following technical data chart illustrates standard geometric clearance and runout tolerance distributions across different nominal diameter ranges for standard Single-Row Ball Slewing Bearings:

Runout Inspection Methodology

1. Mount the assembly securely onto a flat, precision-ground horizontal inspection table.

2. Position calibrated dial indicators against the reference pilot diameters and primary vertical mounting faces.

3. Rotate the outer ring smoothly through multiple full cycles while recording maximum peak-to-valley measurement deviations.

Sealing and Lubrication System Integration

Slewing ring sealing quality is determined by evaluating the structural integration of flexible elastomeric seals that retain internal greases and prevent the ingress of abrasive particulates, moisture, and chemical contaminants into the raceway chamber.

The operating environment for industrial Single-Row Ball Slewing Bearings often includes severe external contaminants, such as abrasive rock dust on mining sites, corrosive salt spray in marine environments, or high-humidity moisture in agricultural operations. If these external contaminants bypass the protective barriers, they mix with the internal lubricating grease to create an abrasive paste that rapidly destroys the polished raceway finish and degrades the rolling balls. Therefore, a premium Single-Row Ball Slewing Bearings must feature an integrated sealing configuration made from durable elastomeric compounds like Nitrile Rubber (NBR) or Viton, engineered to maintain continuous contact across all operating temperature ranges. Cheaply made alternatives often use thin, rigid plastics that crack or deform under thermal changes, leading to lubricant leakage and internal contamination.

In addition to contaminant exclusion, the design of the lubrication system determines how effectively grease moves through the internal bearing components during operation. High-quality Single-Row Ball Slewing Bearings include evenly spaced grease nipples around the non-geared ring perimeter, connected to internal distribution grooves that deliver fresh lubricant directly into the ball path. This efficient grease distribution flushes out worn lubricants and debris during scheduled maintenance cycles. Evaluating sealing performance and grease port placement is key to extending the operational lifespan of Single-Row Ball Slewing Bearings under continuous service conditions.

For demanding heavy construction equipment, using a high-quality excavator slewing ring assembly ensures reliable operation by utilizing multi-lip sealing systems that prevent dirt and muddy water from contaminating the internal grease paths during field operations.

Primary Sealing Quality Indicators

• Material Formulation: NBR or polyurethane compounds provide superior oil retention and resistance to ozone degradation.

• Seal Profile Design: Multi-lip or profile-matching structures maintain continuous contact even during slight structural deflections.

• Lubrication Port Frequency: Multiple grease fittings ensure balanced lubricant replenishment across the internal raceway circumference.

Gear Design and Tooth Accuracy Metrics

Determining gear quality involves measuring tooth profile accuracy, pitch variations, and surface finish metrics to ensure smooth power transmission and prevent localized tooth breakage during operation.

Many Single-Row Ball Slewing Bearings feature integrated gear teeth machined directly onto either the inner or outer ring surface, allowing the assembly to serve as both a rotational joint and a drive mechanism. The accuracy of these gear teeth determines the mechanical efficiency, backlash management, and operational noise levels of the complete machine drive system. High-quality gear cutting uses precise hobbing or shaping equipment to achieve tight pitch tolerances and accurate involute profiles according to international standards. In contrast, low-grade gear manufacturing results in tooth spacing errors and surface roughness, causing irregular gear meshing, high vibration, and accelerated wear on the driving pinion gear.

Because the gear teeth experience cyclic bending stress and high contact forces during operation, they require surface hardening treatments to prevent premature fatigue failure and tooth breakage. Advanced manufacturers apply induction hardening to the tooth flanks and root areas to increase fatigue limits while maintaining a tough, ductile core structure. Checking the depth and uniformity of this tooth hardening layer is a critical step in verifying Single-Row Ball Slewing Bearings quality, particularly for applications involving frequent start-stop cycles or high rotational torque loads.

Essential Gear Quality Requirements

1. Tooth Profile Precision: Compliance with ISO Grade 8 or better gear accuracy ensures uniform contact lines across matching teeth.

2. Flank Hardness Profile: Induction-hardened tooth surfaces should measure between 45 and 55 HRC to maximize resistance to pitting.

3. Root Hardening Integration: The hardened layer should extend completely through the tooth root valley to prevent bending fatigue fractures.

Dynamic Load Testing and Performance Verification

Final quality verification requires evaluating dynamic load testing data and non-destructive inspection records to confirm that the assembled Single-Row Ball Slewing Bearings meets its specified mechanical load ratings under realistic operating conditions.

The final stage in determining Single-Row Ball Slewing Bearings quality consists of comprehensive performance testing and final quality control documentation. Leading global manufacturers subject assembled components to rigorous torque rotation tests on specialized test beds, measuring rotational resistance under simulated axial and tilting moment loads. A uniform, low-torque profile across a full 360 degree rotation indicates accurate internal clearances, precise machining, and proper assembly of the internal rolling elements. Any sudden torque peaks or tight spots suggest geometric errors, internal contamination, or defective rolling components, which require immediate disassembly and correction.

In addition to dynamic testing, non-destructive testing (NDT) methods provide critical verification of structural integrity before components leave the manufacturing facility. Magnetic particle testing and liquid penetrant inspections are used to verify that the machined mounting surfaces, bolt holes, and hardened raceway zones are entirely free of surface micro-cracks. Sourcing a high-quality Single-Row Ball Slewing Bearings requires verifying that the supplier provides a complete documentation package, including clearance inspection reports, runout charts, heat treatment curves, and NDT certificates.

When selecting reliable components for high-tonnage heavy machinery, choosing a precision-tested QND1220 slewing drive ring ensures that the assembly has undergone strict dynamic load testing and non-destructive inspection to verify its operational safety and structural integrity under maximum field load conditions.

Comprehensive Quality Control Checklist

• Rotational Torque Testing: Measure rotational resistance under load to ensure it remains smooth and within specified engineering limits.

• Magnetic Particle Inspection: Confirm that all critical radii, transitions, and bolt holes are free of surface cracks.

• Dimensional Verification: Validate all mounting bolt hole diameters, pitch circles, and pilot dimensions using calibrated coordinate measuring machines.

Technical Summary and Sourcing Conclusions

Determining the real quality of a Single-Row Ball Slewing Bearings requires a comprehensive engineering review that covers material selection, heat treatment accuracy, geometric tolerances, sealing system integration, and final performance verification. By establishing rigid quality control standards for raw material chemical compositions (such as 50Mn and 42CrMo) and verifying raceway induction hardening depth, procurement professionals can effectively safeguard their machinery assets against premature failures and operational downtime. Additionally, maintaining tight control over internal clearances and axial/radial runout metrics ensures uniform load distribution and smooth rotational movement across demanding industrial environments.

For long-term sourcing success, global industrial buyers should partner with transparent manufacturers who provide complete traceability through detailed testing documentation, non-destructive testing records, and certified dimension charts. Investing in high-quality Single-Row Ball Slewing Bearings reduces overall maintenance costs, extends equipment service intervals, and improves power transmission efficiency. By applying the structured technical evaluation methods outlined in this guide, engineering teams can confidently select reliable rotational solutions that deliver optimal performance and long-term durability for their specific machinery applications.
