Slewing Bearing: What It Is, How It Works & Types Explained

Views: 0     Author: Site Editor     Publish Time: 2026-05-20      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

A slewing bearing is a large-scale, heavy-duty rotational component designed to simultaneously transmit complex combinations of high axial, radial, and tilting moment loads while facilitating smooth, continuous, or oscillating rotational movement between decoupled structural platforms.

Understanding the operational profile, internal configurations, and distinct design methodologies of these large-scale components is essential for optimization engineers and procurement specialists looking to maximize machinery lifespans. This comprehensive guide will explore the exact mechanics of these engineering marvels, dissecting their structural components, variations like Single-Row Ball Slewing Bearings, industrial applications, and long-term maintenance frameworks.

Table of Contents

  • What Is a Slewing Bearing?

  • Structure & Key Components

  • How Does a Slewing Bearing Work?

  • Applications Across Industries

  • How to Choose the Right Slewing Bearing

  • Maintenance Basics

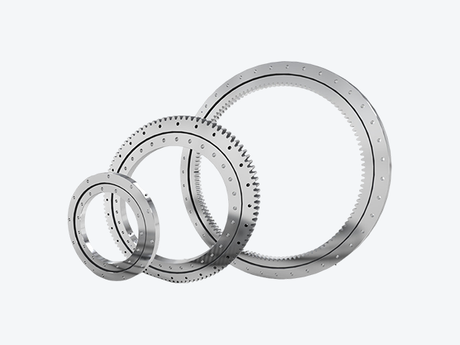

Single-Row Ball Slewing Bearings.png

What Is a Slewing Bearing?

A slewing bearing, frequently referred to as a slewing ring, is a specialized, large-diameter rolling-element bearing characterized by its unique ability to handle immense load combinations across a highly compact, low-profile footprint.

Unlike conventional deep-groove ball bearings or standard roller designs that primarily target either pure radial or direct axial vectors, these massive components are engineered to act as structural structural joints. They typically feature large diameters, often ranging from several hundred millimeters to multiple meters, incorporating integrated fastening holes that allow them to be bolted directly to adjoining machine beds. The core design standard for general industrial applications relies heavily on Single-Row Ball Slewing Bearings, which optimize the balance between high radial capacity and cost-effective structural performance.

The versatility of this engineering category stems from its internal geometry, which relies on precisely ground raceways and specialized load contact angles. While traditional bearings are designed to support rapid, high-speed rotations with minimal load variation, the slewing category focuses on low-speed, highly variable, and high-torque oscillation environments. It acts simultaneously as a structural connective element and an active kinematic pivot, eliminating the need for complex, multi-bearing shafts and reducing overall production costs.

Historically, heavy machinery required elaborate multi-component pivot shafts, upper and lower thrust washers, and supplementary radial stabilizers to manage off-center loads. The introduction of modern slewing rings revolutionized B2B machinery design by consolidating these disparate mechanical demands into a single, pre-engineered drop-in component. This structural consolidation radically simplifies the manufacturing supply chain, allowing heavy equipment builders to achieve superior structural rigidity while reducing total machine weight and profile height.

Structure & Key Components

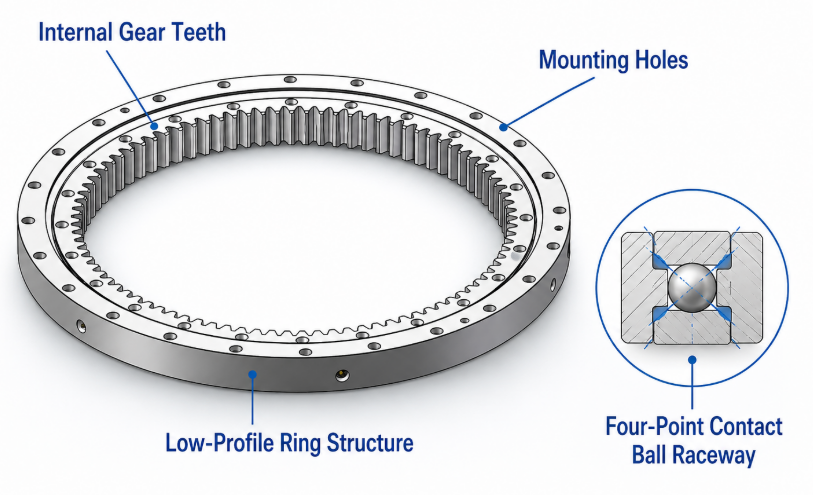

The structural anatomy of a standard slewing bearing comprises an assembly of specialized internal and external elements, including an inner ring, an outer ring, precision rolling elements, isolation spacers, and protective sealing compounds.

1. The Mounting Rings

The foundation of any slewing unit resides in its inner and outer structural rings, which are machined from premium, high-strength forged steel alloys such as 50Mn or 42CrMo. One ring is structurally married to the stationary base of the machinery, while the opposing ring is secured tightly to the rotating upper platform. These rings feature pre-drilled, precision-spaced clearance or tapped mounting holes, facilitating direct, bolt-on integration into the machine structure without requiring external clamping housings.

2. Rolling Elements and Raceways

The mechanical load transmission takes place within the hardened internal raceways machined into the profiles of the rings. The rolling elements, which can consist of precision steel spheres utilized in Single-Row Ball Slewing Bearings or cylindrical rollers in heavy-duty multi-row designs, travel along these path structures. The raceways undergo specialized induction hardening processes to achieve a precise depth of hardness, protecting the structural substrate against subsurface fatigue, high contact stresses, and premature spalling under extreme working conditions.

3. Separation Spacers and Cages

To prevent direct friction between adjacent rolling elements during rotation, design engineers integrate specialized isolation spacers or segmented cages into the raceway cavity. Typically molded from advanced polyamide polymers or cast from non-ferrous metallic alloys, these components eliminate element-on-element skidding, significantly reducing internal frictional torque. This internal isolation ensures uniform distribution of the rolling media around the circumference, minimizing localized heat generation and keeping rotational movement predictable.

4. Sealing Systems and Integration Options

To preserve internal integrity, these units are fitted with elastomeric lip seals along their outer perimeter, preventing the ingress of particulate matter, water, and industrial chemical contaminants while securely retaining vital lubrication. Furthermore, these systems often incorporate integral gearing cut directly into either the interior or exterior ring profile. This integrated gear configuration interfaces seamlessly with drive pinions, allowing the bearing to serve simultaneously as the structural rotation pivot and the primary mechanism for torque transmission.

Component Name

Primary Material

Core Engineering Function

Inner/Outer Rings

50Mn / 42CrMo Forged Steel

Structural load mounting and raceway housing

Rolling Elements

High-Carbon Chromium Steel

Transmission of physical forces across the raceways

Spacers / Cages

Polyamide / Brass

Prevention of element friction and uniform distribution

Integral Seals

Nitrile Rubber (NBR) / Viton

Debris exclusion and internal lubrication retention

How Does a Slewing Bearing Work?

A slewing bearing operates by transferring complex multidirectional working forces from a mobile upper structure to a static foundation through rolling point or line contact along induction-hardened steel raceways.

The fundamental operational principle relies on geometric load vector resolution, allowing the single component to manage three distinct load types simultaneously: axial force acting parallel to the center axis, radial force pushing perpendicular to the rotation path, and overturning moment loads resulting from off-center, cantilevered masses. In a standard application utilizing Single-Row Ball Slewing Bearings, the four-point contact geometry allows a single steel ball to touch both the upper and lower raceways at specific, pre-determined angular intersections, resolving these distinct forces down into predictable internal pathways.

The step-by-step mechanical load transfer and resolution process within the system operates according to the following sequential flow:

Step

Phase

Description

Key Mechanism

1

Force Generation

Massive multi-directional working loads originate from the upper mobile frame (e.g., boom, cab, or payload).

Combined Axial, Radial, and Overturning Moment Vectors

2

Component Reception

Forces hit the mounting bolts and pass directly into the moving ring of the slewing assembly.

High-Tensile Fasteners & Forged Steel Rings

3

Contact Resolution

The internal raceway configuration intercepts the complex forces, splitting them into targeted angular contact paths.

Four-Point Contact Geometry / Rolling Contact Line

4

Load Dissipation

Balls or rollers roll along the paths, smoothly spreading the massive stresses across the active circumference.

Induction-Hardened Steel Media & Spacers

5

Ground Transmission

Resolved forces exit through the mounting interface of the static ring, anchoring safely into the machine chassis.

Rigid Multi-Bolt Static Base Integration

When a heavy crane swings a payload, the weight creates a massive overturning moment that attempts to tilt the upper revolving frame relative to the static crawler chassis. The slewing mechanism absorbs this tilting action through tensile stresses on one side of the ring and compressive forces on the opposing side. As the internal drive pinion rotates against the integral gear teeth of the bearing, the rolling elements smoothly glide along the circular paths, maintaining rigid alignment and preventing mechanical binding or structural distortion.

Furthermore, the mechanical efficiency of this operational cycle depends on minimizing frictional torque variations under shifting load centers. As the machine shifts its working angle, the internal contact points continuously adjust, distributing the active force vectors evenly across multiple rolling elements. This uniform dissipation prevents structural deformation of the machine frame, absorbs shock impulses during sudden acceleration or braking cycles, and maintains steady angular velocities required for precise position control.

Applications Across Industries

Slewing bearings are deployed across a vast spectrum of heavy industrial sectors where large structural assemblies require rigid, high-capacity, and low-friction angular positioning control.

1. Construction and Earthmoving Machinery

The construction sector represents the largest consumer of heavy-duty slewing technology globally. Hydraulic excavators require constant, rapid 360-degree rotation of their upper cabs and boom arms while exerting massive digging forces deep into the earth. For highly demanding earthmoving operations, selecting a precision-built component is non-negotiable.

A prime example of an industry-standard solution engineered for these punishing duty cycles is the high-performance Excavator Slewing Ring Assembly QND1220-32Z7-CZ, which features a rugged, induction-hardened internal gear design explicitly optimized to withstand the intense, repeating shock loads encountered by 20-ton class heavy excavators. This specific engineering solution delivers excellent structural stability, high fatigue resistance, and extended seal life under muddy, high-impact field operations.

2. Material Handling and Lifting Equipment

Tower cranes, harbor gantry cranes, and mobile truck-mounted lifting platforms depend entirely on slewing rings to safely position multi-ton payloads at extreme horizontal distances. In these scenarios, the component must manage massive overturning moments caused by extended boom lengths. The structural integrity of the bearing ring prevents catastrophic structural failures, while its low rolling resistance allows smooth swing motions, preventing load sway and ensuring precise material positioning on crowded commercial construction sites.

3. Renewable Energy Systems

In the wind power industry, large-scale wind turbines utilize specialized slewing solutions within two critical systems: pitch control and yaw control. The yaw bearing is mounted between the stationary tower top and the rotating nacelle, allowing the turbine to pivot into the wind direction to maximize energy capture. Simultaneously, individual blade pitch bearings rotate the turbine blades along their longitudinal axes to optimize aerodynamic angles or feather the blades in dangerous storm conditions, requiring absolute reliability in isolated offshore environments.

4. Medical, Defense, and Advanced Automation

Beyond heavy industrial equipment, high-precision variants are integrated into advanced medical imaging equipment, such as CT scanners, where smooth, quiet, and rapid rotation of the scanning gantry is critical for diagnostic imaging accuracy. In defense and radar sectors, these rings support automated satellite tracking dishes and armored vehicle gun turrets, demanding exceptional angular precision, zero internal backlash, and flawless operation across extreme environmental temperature ranges.

How To Choose the Right Slewing Bearing

Selecting the optimal slewing bearing requires a rigorous analysis of the application's maximum operating loads, rotational speed profiles, ambient environmental hazards, and required service life targets.

Load Profiling and Vector Calculations

The primary step in the engineering selection process involves compiling a comprehensive load diagram that details the concurrent peak axial forces, radial forces, and overturning moments. Engineers plot these values against structural limit curves to ensure the chosen model maintains an adequate safety factor under both static holding conditions and active dynamic rotation. For applications with moderate, predictable load patterns where space is constrained and cost efficiency is paramount, specifying standard Single-Row Ball Slewing Bearings with four-point contact geometry is often the most mathematically sound engineering decision.

Gear Configurations and Tooth Design

Specifiers must evaluate the drive torque requirements to determine whether an internal, external, or gearless ring profile is best suited for the overall machine layout. Internal gearing offers a highly compact design footprint and shields the driving pinion from external debris, while external gearing configurations simplify access for technicians and allow for larger pinion gear dimensions to deliver higher drive torques. The tooth geometry must also be evaluated, with options for induction hardening on the gear flanks to mitigate wear from repetitive acceleration and braking forces.

Gear Position Type

Structural Advantages

Primary B2B Application Use-Case

Internal Gearing

Maximum space optimization, complete gear tooth enclosure, enhanced drive pinion protection from external dirt.

Hydraulic Excavators, Underground Tunnel Boring Machines

External Gearing

Simplified inspection access, greater pinion gear flexibility, maximizes external drive torque capability.

Tower Cranes, Mobile Truck Cranes, Shipyard Gantry Cranes

Gearless (Smooth)

Reduced component weight, lowered machining complexity, optimal for external hydraulic or belt drive mechanisms.

Wind Turbine Blade Pitch, Medical CT Scanners, Radar Arrays

Environmental Sealing and Material Metallurgy

The operational environment dictates the selection of sealing configurations and material protection options. Equipment operating in corrosive maritime environments or exposed to continuous desert dust requires advanced synthetic rubber seals, such as Viton or high-nitrile compounds, coupled with specialized multi-lip geometric designs. Furthermore, the base steel metallurgy must match the ambient climate; low-temperature operations require specialized deep-temper treatments to prevent brittle fractures, while marine applications often require specialized zinc-flake anti-corrosion coatings.

Maintenance Basics

Proactive maintenance of a slewing bearing focuses on structured, systematic lubrication regimes, rigorous seal integrity audits, and meticulous tracking of mounting bolt clamping torques.

1. Systematic Lubrication Protocols

Regular greasing is the single most critical factor determining the ultimate service lifespan of any rolling-element slewing ring. Fresh lubricant must be systematically pumped into the internal raceway cavities through integrated grease nipples while the bearing is actively rotating to ensure uniform coverage across all internal tracks. This procedure displaces old, oxidized grease, evacuates any micro-particulate wear debris, and maintains a continuous protective hydrodynamic oil film between the rolling elements and the steel raceways.

2. Gear and Pinion Inspections

For geared variants, the open gear mesh requires independent, dedicated lubrication with specialized, highly adhesive open-gear greases designed to resist centrifugal flinging and water washout. Technicians must routinely inspect the gear teeth for signs of uneven wear patterns, pitting, or micro-cracking, which often signal structural misalignment or incorrect pinion backlash adjustments. Keeping the gear mesh properly lubricated and free of trapped stones or hard construction debris prevents rapid abrasive wear and protects against catastrophic tooth shearing under sudden shock loads.

3. Seal Audits and Bolt Clamping Torque Verification

The external elastomeric seals must be inspected frequently for cracks, physical tears, or structural degradation. A damaged seal permits abrasive dirt and moisture to penetrate the internal raceway, causing rapid abrasive wear and pitting that quickly destroys the rolling surface.

Simultaneously, because slewing rings are subjected to intense, alternating vibrational stresses, technicians must use calibrated hydraulic torque wrenches to verify that all mounting bolts maintain their original engineered pre-load specifications, as loose hardware leads to uneven load distribution and rapid structural failure.

4. Backlash Clearance Measurement and Wear Monitoring

Over years of continuous industrial operation, natural material wear will occur within the internal raceway channels, leading to a gradual increase in axial and radial play. Maintenance engineering teams should establish a baseline tilt clearance measurement upon equipment commissioning and track this value through periodic dial indicator checks. If the structural play exceeds the maximum clearance limits specified by the original manufacturer, it indicates that the raceway has reached its fatigue limit, and the unit must be scheduled for complete overhaul or replacement to avoid unexpected structural failure.

Conclusion

Slewing bearings represent a pinnacle of heavy engineering consolidation, successfully transforming multi-component, complex structural linkages into a single, highly efficient, and reliable package. Whether configured as a standard, versatile four-point Single-Row Ball Slewing Bearings configuration or customized into a heavy-duty multi-row cylindrical roller assembly, these components provide the structural and mechanical foundation required for modern industrial motion. By understanding their internal layout, operational dynamics, and meticulous selection protocols, B2B enterprises can safely design, operate, and maintain heavy machinery with absolute confidence. Long-term operational profitability hinges on choosing precision-manufactured components, executing rigorous lubrication schedules, and closely monitoring structural clearances to ensure these massive industrial joints turn smoothly for years to come.
