The three-row roller slewing bearing plays a critical role as the primary structural and rotational joint in heavy-duty machinery, simultaneously absorbing high axial loads, heavy radial loads, and massive tilting moments. By distributing these multi-directional forces across three independent rows of hardened cylindrical rollers, it eliminates localized stress concentration, minimizes friction, and delivers structural stability, ultra-high load-carrying capacity, and high positioning accuracy for extreme industrial applications.

Understanding the precise mechanics, applications, and structural benefits of this robust component is essential for engineering design and equipment maintenance. The following sections provide an extensive architectural teardown of how this bearing works, where it operates, and why it remains the gold standard for high-torque, heavy-load global industrial infrastructure projects.

Content Structure Overview

Structural Design of Three-Row Roller Slewing Bearings

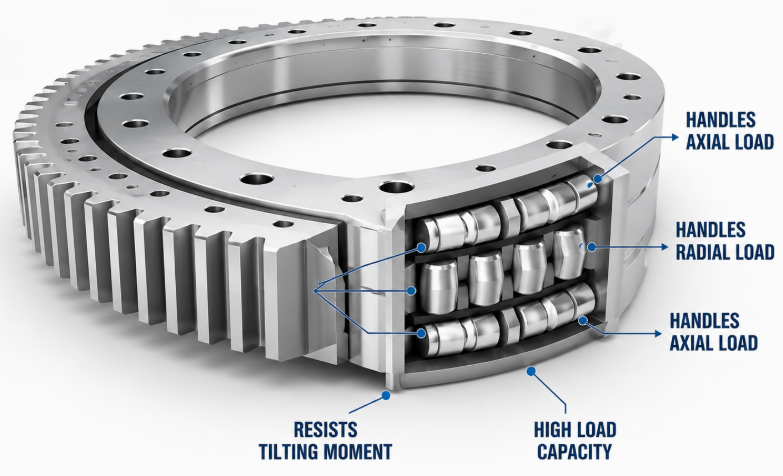

The structural design of a three-row roller slewing bearing features three completely independent rows of cylindrical rollers arranged orthogonally inside a specialized ring assembly consisting of an inner ring, an outer ring, and separate housing walls.

The physical architecture of this bearing is engineered to eliminate the design limitations found in traditional ball bearings. Standard heavy-duty rotary connections often struggle when subjected to extreme overturning forces combined with high radial thrust. The three-row roller configuration addresses this by using three separate rows of cylindrical rollers, each dedicated to a single axis of force. The internal configuration comprises an upper horizontal roller row, a lower horizontal roller row, and a vertical radial roller row. This arrangement ensures that the rolling elements experience pure compressive loads rather than complex angular shear stresses.

The structural rings are manufactured from high-strength forged steel alloys, such as 42CrMo or 50Mn, which undergo specialized heat treatment processes. The raceways where the rollers travel are induction-hardened to achieve high surface hardness while maintaining a tough, resilient core. Because the rollers are cylindrical, they provide line contact along the raceway surfaces rather than the point contact provided by ball bearings. This line contact increases the effective contact surface area, allowing the bearing assembly to support immense weight without permanent material deformation.

To keep the rolling elements properly aligned and prevent friction between adjacent rollers, specialized cages or isolated spacers made from high-grade polymers or brass are integrated into the design. The outer or inner rings can also be machined with precise spur or helical gear teeth. This allows the bearing to serve a dual purpose: acting as both the primary structural support joint and the main drive gear for the machine’s slewing mechanism.

Primary Load Carrying Capacities and Mechanical Distribution

The internal mechanics of a three-row roller slewing bearing distribute incoming axial forces, radial forces, and tilting moments to dedicated roller tracks, completely isolating different mechanical loads.

The unique mechanical advantage of this bearing lies in how it separates forces. In heavy machinery operations, loads are rarely simple; a crane lifting a load experiences a downward vertical force (axial load), a horizontal pull due to wind or movement (radial load), and a massive tipping force caused by the extended boom (tilting moment). In this three-row design, the upper horizontal roller row absorbs the downward axial loads and a significant portion of the tilting moment. When the machine lifts a massive weight, the force pushes down on the upper raceway, compressing these large-diameter upper rollers.

Conversely, the lower horizontal roller row handles the upward forces and the opposite side of the tilting moment vector. This prevents the rotating superstructure from lifting or separating from the chassis. Meanwhile, the vertical roller row is positioned to handle pure radial forces. Any lateral shifting, side-loading, or impact force pushing horizontally against the machine is absorbed by this vertical row.

By separating these loads, the bearing prevents complex stress concentrations. Each roller operates within its ideal mechanical parameters, ensuring predictable behavior even during sudden load shifts. For example, during high-tonnage earthmoving operations, installing a heavy-duty 150 ton swing bearing for large excavator machinery ensures that these intense forces are safely distributed, preventing localized structural failure or catastrophic metal fatigue.

Key Advantages of Selecting Three-Row Roller Configurations

Choosing a three-row roller slewing bearing provides maximum structural rigidity, unmatched load capacity per unit diameter, an extended operational lifespan, and high structural safety factors under extreme operating conditions.

The primary advantage of this design is its high load-carrying capacity relative to its physical size. When compared to single-row ball or cross-roller variations, a three-row roller bearing can support significantly higher loads within the same boundary dimensions. This allows engineers to reduce the overall diameter of the slewing ring mechanism, enabling more compact and lightweight machinery designs without sacrificing structural safety margins. This reduction in size helps optimize raw material usage throughout the manufacturing process.

Another key advantage is its exceptional structural rigidity. Because cylindrical rollers provide line contact, the elastic deformation under peak loads is minimal. This rigidity is essential for precision applications, such as high-reach concrete pumps or large-scale radar positioning mounts, where even a fraction of a degree of deflection at the base could cause meters of movement or instability at the end of the boom. The low-friction rotation provided by the separated roller rows also reduces the startup torque required by the slewing drive motors, saving energy and minimizing wear on the drive system.

Additionally, these bearings offer excellent durability and resistance to wear. Because each row is optimized for a specific direction of force, subsurface shear stresses are minimized, preventing the pitting and flaking common in multi-purpose raceways. This extended operational life reduces equipment downtime, lowers maintenance costs, and ensures long-term reliability for critical industrial assets.

Critical Industrial Applications of Three-Row Roller Slewing Bearings

Three-Row roller slewing bearings are widely used in heavy industrial equipment where massive weight, structural safety, and continuous rotation are core operational requirements.

The unique properties of these bearings make them indispensable in heavy earthmoving and construction equipment. Large-scale mining shovel units and high-tonnage hydraulic excavators rely on these components to manage the extreme shocks and stresses encountered during rock excavation. The continuous, high-impact forces generated when a bucket breaks through hard ground require a robust foundation. Utilizing a durable premium excavator slewing ring replacement component allows these massive machines to rotate smoothly under full load, shift material efficiently, and maintain high positional stability during grueling, multi-shift mining operations.

In the maritime and offshore sectors, these bearings are critical components for deck cranes, floating crane vessels, and offshore oil platform mooring systems. Offshore environments introduce extra challenges, such as salt-spray corrosion and constant dynamic loading caused by wave action. The three-row roller design provides the necessary structural safety margins to prevent crane tipping during deep-sea lifting operations. Their compact footprint also makes them ideal for port container stackers and heavy shipyard gantry cranes.

Bulk material handling infrastructure also depends heavily on these components. Industrial stacker-reclaimers, which manage thousands of tons of coal, iron ore, or grain per hour, use large-diameter three-row bearings to rotate their long boom conveyor systems smoothly. Tunnel boring machines (TBMs) also use specialized versions of these bearings to support the immense thrust and torque of the main cutter head as it drills through solid rock.

Essential Installation and Maintenance Practices for Heavy-Duty Bearings

Proper installation and maintenance of a three-row roller slewing bearing requires strict adherence to bolt tightening torques, regular structural flat testing, precise lubrication schedules, and periodic wear monitoring.

The performance and service life of a three-row bearing depend heavily on the quality of its installation. The mounting structure must be extremely flat and rigid to prevent the bearing rings from distorting when bolted down. Even minor structural variations in the mounting surface can distort the internal hardened raceways, causing uneven load distribution among the rollers, localized friction heating, and early component failure. Engineers must use precision machining or high-strength leveling polymers to ensure the mounting base meets the manufacturer's flatness specifications before installation.

High-strength bolts (typically grade 10.9 or 12.9) must be used to secure the bearing to the chassis. These fasteners must be tightened using a calibrated hydraulic torque wrench in a cross-star pattern to ensure uniform clamping force across the entire circumference. Regular maintenance schedules should include checking bolt pre-tension, as loose bolts can cause structural movement and damage the bearing or mounting threads.

Lubrication is vital for reducing friction and protecting internal components from corrosion. High-pressure grease must be injected into the integrated grease nipples while the bearing is rotating to ensure even distribution across all three roller rows and raceways. In harsh environments like mining or marine ports, the seals must be inspected regularly to prevent contaminants like dust, grit, or saltwater from bypassing the rubber lips and entering the internal chambers. Regular axial clearance measurements, or tilt testing, should be performed and recorded to track internal wear patterns over time, allowing maintenance teams to schedule planned overhauls before a catastrophic breakdown occurs. For operators managing large fleets, integrating an industrial grade excavator swing ring assembly ensures standard maintenance intervals are easy to maintain, keeping your machinery running reliably and productively over the long term.

Summary and Engineering Conclusion

The three-row roller slewing bearing is a crucial component in heavy mechanical engineering, offering unmatched load capacity and structural rigidity. By dividing complex forces among three independent rows of cylindrical rollers, it provides an elegant and robust solution to the challenges of multi-directional loading. Whether operating on a large excavator in a mine or a massive crane on an offshore platform, these components ensure smooth, reliable rotation under immense stress. Proper installation, regular lubrication, and consistent monitoring are essential to maximizing their service life, preventing unexpected downtime, and ensuring safe industrial operations worldwide.

Our manufacturing facility specializes in engineering high-precision, heavy-duty slewing solutions tailored to demanding global industrial standards. By sourcing premium forged materials, utilizing advanced induction-hardening techniques, and maintaining strict quality control across all production processes, we deliver durable, high-performance slewing rings. Our products are engineered to withstand the harshest operating conditions, providing your heavy machinery with exceptional structural reliability, minimal maintenance requirements, and long-term operational efficiency. Contact our engineering team today to find the ideal slewing ring configuration for your next project.
