Crane slewing bearings are large-scale, specialized rolling-element bearings designed to support immense combined loads and facilitate the smooth, 360-degree rotation of a crane's upper superstructure relative to its stationary base.

To help procurement managers, mechanical engineers, and heavy machinery operators fully understand how these vital components optimize equipment uptime and structural safety, this comprehensive technical guide analyzes their underlying engineering characteristics, practical operational advantages, core industrial applications, and essential maintenance practices.

Technical Overview and Content Map

What Are Crane Slewing Bearings?

A crane slewing bearing, commonly referred to as a slewing ring or turntable bearing, is a large-diameter rolling-element bearing capable of accommodating high axial, radial, and tilting moment loads simultaneously while facilitating smooth rotational movement.

These specialized components differ fundamentally from standard industrial bearings due to their unique geometric proportions and structural designs. While conventional bearings feature small diameters and are designed to support high-speed, purely radial or axial loads, a heavy-duty slewing ring typically utilizes a large, low-profile diameter ranging from several hundred millimeters to multiple meters. This spacious, open-center configuration is highly strategic, allowing design engineers to route essential hydraulic hoses, electrical control wiring, mechanical drive shafts, and control linkages directly through the center of the ring, saving valuable spatial real estate within the machine chassis.

Architecturally, a standard slewing assembly consists of an inner ring and an outer ring, with one of these rings typically incorporating precision-machined gear teeth directly onto its circumference. These integrated teeth mesh directly with the drive pinions of the crane's rotation motor, eliminating the need for separate external drive gears and simplifying the overall mechanical drivetrain. Within the hardened internal raceways, rolling elements such as high-tensile steel balls or cylindrical rollers are separated by specialized spacers or individual cages to reduce frictional resistance and prevent internal structural binding during heavy load distributions.

The mounting configuration of these large-diameter rings relies on a series of pre-drilled, high-precision fastening holes distributed evenly across both the inner and outer flanges. Heavy-duty, high-tensile bolts securely anchor the bearing rings to the machined mounting surfaces of the upper turret and lower chassis. Because cranes operate under dynamic environmental conditions, these components are engineered with deep induction-hardened raceways and robust structural seals to prevent the ingress of abrasive dust, moisture, and industrial debris, ensuring stable mechanical performance.

Key Features of Crane Slewing Bearings

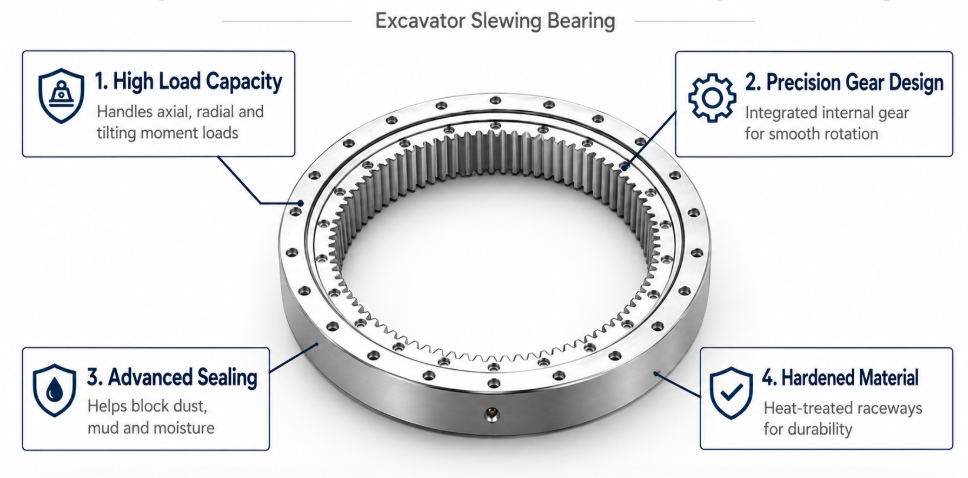

The core technical features of crane slewing bearings include an exceptional multi-directional load capacity, integrated precision gearing options, advanced environmental sealing, and highly specialized rolling element configurations designed for extreme structural stress.

1. High Multi-Directional Load Capacity

Heavy-duty lifting machinery generates highly complex structural forces during daily operation. Unlike standard industrial equipment that experiences predictable, single-directional forces, an operational crane subjects its rotational axis to a combination of vertical downward forces (axial load), horizontal forces resulting from wind or operational movement (radial load), and a severe overturning force caused by the extended boom carrying a heavy payload (tilting moment load). The internal raceway geometry of a slewing ring is engineered to resolve these multi-axis vector forces simultaneously, distributing the immense physical stress evenly across the hardened rolling elements and preventing localized structural deformation.

2. Integrated Precision Gearing Designs

To optimize the efficiency of the crane’s swing mechanism, manufacturers integrate precision gear profiles directly into the structural rings. Depending on the mechanical layout of the equipment, these gears can be cut into either the external perimeter of the outer ring or the internal circumference of the inner ring. The tooth profiles undergo advanced induction hardening processes to withstand the continuous torsional forces applied by the drive motor pinions. This integrated design approach reduces the total number of moving parts within the machine assembly, minimizes structural backlash, and establishes a direct, rigid link between the rotational drive system and the crane superstructure.

3. Specialized Configuration Types

The precise internal configuration of a turntable bearing dictates its ultimate operational capabilities and structural limits. Different crane designs require specific rolling element layouts to balance cost, weight, and load-bearing performance:

• Single-Row Ball Slewing Bearings: This highly versatile and cost-effective configuration utilizes a single row of high-tensile steel balls running along four-point contact raceways. The Single-Row Ball Slewing Bearings design provides an exceptional balance of radial stiffness and axial capacity, making Single-Row Ball Slewing Bearings the absolute industry standard for light to medium-duty mobile cranes, utility trucks, and medium-sized industrial excavators where structural space is highly optimized.

• Double-Row Ball Slewing Bearings: Featuring two distinct rows of steel balls rolling along separate parallel raceways, this configuration significantly increases the axial and moment load capacity without expanding the outer diameter of the ring, making it ideal for cranes operating with longer boom extensions.

• Three-Row Roller Slewing Bearings: This maximum-capacity design utilizes three independent rows of cylindrical rollers oriented perpendicularly to one another. One row manages vertical axial forces, while the other two handle radial forces and severe overturning moments, providing maximum structural rigidity for heavy-duty offshore marine cranes and massive crawler units.

4. Advanced Materials and Precision Hardening

The structural integrity of a slewing ring depends entirely on advanced metallurgy and precise heat treatment protocols. The base rings are forged from premium-grade structural carbon or alloy steels, such as 50Mn or 42CrMo, which offer superior tensile strength and impact toughness. The internal raceways undergo targeted induction hardening to achieve a precise hardness depth, ensuring the rolling paths resist surface fatigue and pitting under continuous operational stress. Conversely, the non-hardened core of the rings retains its natural ductility, allowing the component to flex slightly under extreme shock loads without cracking.

Technical Performance Analysis Matrix

Benefits of Crane Slewing Bearings

The implementation of premium slewing bearings yields significant operational benefits, including enhanced structural safety, high positional accuracy, space-efficient machinery design, and reduced lifetime maintenance costs.

1. Enhanced Structural Safety and Stability

In heavy lifting operations, structural failure is not an option. The robust engineering of a certified slewing ring provides a substantial factor of safety against catastrophic overturning failures. By evenly distributing massive dynamic loads across a wide, stable circular footprint, the bearing prevents localized stress concentrations on the crane chassis. This structural stability gives crane operators the confidence to execute complex lifts at maximum boom extensions, knowing the rotational foundation is entirely secure.

2. Exceptional Positional Accuracy and Control

Modern construction and industrial logistics demand extreme precision when placing heavy structural elements, such as precast concrete panels or delicate power station transformers. Modern slewing rings feature minimal internal clearance and precise gear tooth tracking, which eliminates erratic jerking movements during rotation. This smooth, predictable rotational profile allows operators to swing, position, and hold immense payloads within millimeters of the target location, minimizing the risk of site accidents or structural damage.

3. Space-Saving Structural Compactness

Traditional rotational mechanisms of the distant past required complex arrangements of center pins, radial rollers, and independent thrust bearings, which consumed massive amounts of vertical and horizontal space. A modern turntable bearing consolidates all of these complex mechanical functions into a single, low-profile assembly. This ultra-compact design allows machinery manufacturers to lower the overall center of gravity of the crane, improving vehicle stability during transit while freeing up critical space for internal engines, hydraulic pumps, and electronic control modules.

4. Long-Term Durability and Cost Efficiency

Investing in a high-quality, induction-hardened slewing ring drastically lowers the total cost of ownership over the operational lifecycle of a piece of heavy machinery. Engineered to withstand millions of rotational cycles under load, these components exhibit excellent resistance to abrasive wear, surface fatigue, and environmental corrosion. By reducing the frequency of component replacements and avoiding unscheduled machinery breakdowns, fleet operators protect their project schedules and maximize their equipment utilization rates.

Applications of Crane Slewing Bearings

Crane slewing bearings are utilized across a vast spectrum of industrial sectors, serving as the critical rotational joint in mobile truck cranes, tower cranes, marine deck machinery, heavy crawler units, and industrial earthmoving equipment.

1. Mobile Truck Cranes and Utility Vehicles

Mobile truck cranes must travel at highway speeds and deploy rapidly upon arriving at a construction site. These highly mobile machines require a lightweight yet incredibly robust rotational joint to connect the truck chassis to the telescopic lifting boom. Manufacturers frequently select a high-performance Single-Row Ball Slewing Bearings configuration for these applications, as it provides the necessary moment load resistance without adding excessive dead weight to the vehicle, ensuring compliance with strict axle-load transportation regulations.

2. Tower Cranes for High-Rise Construction

Tower cranes dominate the skylines of modern urban construction zones, operating at immense heights to lift building materials across expansive radiuses. The slewing ring is installed at the top of the vertical mast, directly beneath the rotating jib and counter-jib assembly. Because these cranes are exposed to severe, continuous wind loads at high altitudes, their slewing rings are engineered with deep, induction-hardened raceways to handle constant tilting moments while maintaining perfect rotational smoothness for precise concrete and steel placements.

3. Marine and Offshore Deck Cranes

The marine environment is uniquely hostile to mechanical machinery, combining continuous saltwater exposure with volatile ship motions. Marine deck cranes, offshore oil rig tenders, and specialized port vessel unloaders utilize heavy-duty slewing rings protected by specialized marine-grade lip seals and anti-corrosive zinc or epoxy surface coatings. These bearings must withstand severe corrosion while executing stable material transfers between moving ships and stationary docks under unpredictable open-ocean swells.

4. Heavy Earthmoving Excavators and Demolition Rigs

Beyond traditional cranes, heavy-duty earthmoving equipment relies entirely on the same rotational principles. High-performance excavators demand exceptionally rugged turntable rings to manage the repetitive shock loads generated when the bucket impacts rock, clay, or concrete structures. For heavy-duty machinery in the 21 to 23-ton weight class, utilizing a specialized, precision-engineered 21-23 Ton Slewing Ring for Excavator QND1220-32Z7 ensures that the machine can execute high-torque excavation cycles and rapid swinging motions continuously without suffering premature raceway pitting or structural gear tooth breakage.

Maintenance of Crane Slewing Bearings

The comprehensive maintenance protocol for crane slewing bearings centers on strict periodic lubrication, routine bolt torque verification, regular raceway clearance measurements, and proactive gear inspection.

1. Precise Lubrication Protocols

Inadequate or improper lubrication is the leading cause of premature failure in heavy-duty slewing rings. The internal raceways and external gear teeth must be greased at strict operational intervals using specialized extreme-pressure (EP) greases containing lithium or molybdenum disulfide additives. These advanced lubricants form a microscopic, high-strength film between the steel balls and the raceway surfaces, preventing metal-to-metal contact under heavy loads.

• Raceway Lubrication: For standard construction cranes, the internal raceways should be thoroughly greased every 100 to 200 operating hours. The grease should be pumped into the integrated grease fittings while slowly rotating the crane through at least two full 360-degree rotations. This ensures an even distribution of fresh grease across the entire internal perimeter while purging old, contaminated grease through the structural lip seals.

• Gear Teeth Lubrication: The gear teeth require independent maintenance, typically every 10 to 20 operating hours or once a week. Operators should apply specialized open-gear lubricants directly to the teeth using automated spray systems or heavy-duty manual brushes to minimize friction and abrasive wear caused by airborne dust and grit.

2. Fastening Bolt Torque Inspections

Because slewing bearings are subjected to continuous dynamic vibration and intense structural tilting moments, the high-tensile mounting bolts can experience gradual relaxation or loss of tension over time. Loose mounting bolts lead to localized bearing distortion, accelerated raceway wear, and potential structural separation under load. Maintenance technicians must perform routine torque checks using calibrated hydraulic or manual torque wrenches.

3. Measuring Raceway Clearance and Wear Track

To accurately track the internal health of a slewing ring without dismantling the entire machine superstructure, technicians perform a periodic "tilting clearance measurement." This diagnostic procedure involves placing a precision dial indicator between the upper rotating chassis and the lower stationary base. The technician records the baseline measurement, extends the crane boom fully to apply a maximum overturning moment, and notes the physical displacement on the gauge.

By comparing these measurements over time against the manufacturer’s original technical specifications, fleet managers can precisely track the wear rate of the internal raceways. If the axial or radial clearance exceeds the maximum permissible limit defined by the original equipment manufacturer, it indicates significant internal wear, serving as a critical indicator that the bearing must be scheduled for professional reconditioning or complete structural replacement before a hazardous operational failure occurs.

Maintenance and Troubleshooting Flowcharts

Scheduled Inspection Maintenance Workflow

• Step 1: Lubrication Cycle (Every 100–200 Hours)

  • Pump extreme-pressure lithium grease into integrated fittings.

  • Slowly rotate the superstructure 360 degrees to distribute grease evenly.

  • Inspect purged grease at the lip seals for metallic particles.

• Step 2: Fastening Bolt Inspection (Every 500 Hours)

  • Deploy calibrated hydraulic torque tools to check all mounting fasteners.

  • Verify bolt tension against specification limits (Grade 10.9/12.9).

  • Replace any elongated, deformed, or corroded structural bolts immediately.

• Step 3: Wear Track Dial Assessment (Every 6 Months)

  • Mount a precision dial indicator between the chassis and rotating turret.

  • Extend the boom to max capacity to record dynamic tilting displacement.

  • Compare current axial/radial clearances against factory structural limits.

Diagnostic Troubleshooting Matrix

Conclusion

Crane slewing bearings represent a pinnacle of heavy industrial engineering, providing the structural foundation and rotational control required by modern material handling and construction machinery. From versatile Single-Row Ball Slewing Bearings to maximum-capacity multi-row roller configurations, these robust components successfully manage massive, multi-directional dynamic loads under grueling operational schedules.

By implementing specialized engineering designs, selecting premium forged alloys, and enforcing strict periodic maintenance and lubrication programs, industrial enterprises can maximize the service life of their turntable assemblies. Ultimately, a deep understanding of slewing bearing technology allows fleet managers, procurement officers, and engineering teams to select the optimal mechanical components for their specific lifting applications, securing high operational efficiency, minimal machine downtime, and uncompromising site safety.
