Heavy-duty industrial machinery relies fundamentally on the integrity and performance efficiency of large-scale rotational joints known as slewing rings. These specialized mechanical components are engineered to simultaneously transmit substantial axial forces, radial forces, and tilting overturning moments across stationary and rotating structures. Selecting the optimum slewing joint architecture remains a critical phase in mechanical engineering, as the internal rolling element layout directly dictates the operational lifespan, structural rigidity, and weight-bearing parameters of the entire machine assembly.

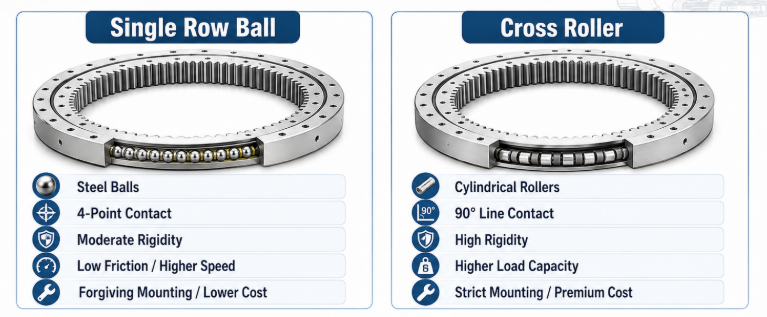

The fundamental difference between Single Row Ball Slewing Ring Bearings and Cross Roller Slewing Ring Bearings centers on their internal rolling elements and contact geometries: single-row variants utilize spherical balls that achieve four-point point contact along deep-groove raceways to optimize smooth rotation and cost efficiency under moderate loads, whereas cross roller configurations deploy alternating cylindrical rollers that form linear contact profiles aligned orthogonally at 90-degree angles to maximize structural stiffness, minimize clearance play, and handle extreme multi-directional loads.

Understanding the subtle variations in torque resistance, deflection under load, manufacturing tolerances, and cost profiles between these two bearing typologies allows system designers to make highly optimized choices. This comprehensive technical guide analyzes the design metrics, structural characteristics, industrial field applications, and engineering benchmarks of both single-row ball and cross roller assemblies to provide a clear path for technical procurement and structural design engineering.

Single Row Ball Slewing Ring Bearings

Single row ball slewing ring bearings consist of a single row of spherical rolling elements constrained within integrated raceways to provide four-point contact versatility, high rotational compliance, and reliable multi-directional load transmission for general industrial operations.

Structure & Design

The structural architecture of this configuration is distinguished by a single set of precision-ground steel balls arranged circumferentially within an inner and outer ring system. The raceway profiles are carefully machined with a specific osculation ratio, meaning the curvature radius of the circular arc raceway is slightly larger than the radius of the ball elements. This deliberate geometry establishes a four-point contact profile, where each ball interfaces with the upper and lower raceway surfaces of both the inner and outer rings simultaneously, allowing a single row of balls to handle combinations of downward thrust, radial displacement, and complex overturning moments.

To protect the internal contact paths from environmental contamination, moisture ingress, and particulate abrasive wear, these units are standardly fitted with highly durable synthetic rubber lip seals on both outer perimeters. The internal spacing between the spherical elements is meticulously maintained using continuous polymer cages or segmented spacers, which eliminate inter-element friction, minimize rotational torque variations, and prevent mechanical binding during operation. Furthermore, the rings can be specified as non-geared, internally geared, or externally geared with hard-spur or helical tooth profiles to facilitate direct integration with drive pinions.

Engineering high-durability tracking systems requires components built with specialized metallurgy and exact hardening profiles. Modern industrial facilities utilize deep case-hardening techniques on the raceway paths while keeping the core tough and resilient to absorb shock loads. For applications demanding long-term operational reliability and high-efficiency performance metrics, designers frequently specify premium-grade high performance single-row ball slewing solutions which exhibit superior raceway conformity, optimized contact angles, and highly wear-resistant surface treatments designed to extend operational lifetimes under tough field conditions.

Advantages

1. Smooth Rotational Characteristics: The point-contact profile inherently generates lower rolling friction compared to line-contact variants, enabling lower starting torque, lower running torque, and highly consistent, fluid rotational motion even during subtle micro-positioning adjustments.

2. Moderate Tolerance For Structural Deflection: Because the spherical elements maintain point contact, the bearing assembly is naturally more forgiving of slight structural misalignments, uneven mounting surfaces, or elastic deflections within the supporting steel framework without causing immediate binding.

3. Economical Production and Maintenance Cost: The manufacturing processes for grinding circular arc raceways and producing high-precision spherical balls are highly mature, making these bearings a cost-effective choice for standard industrial projects that require high performance without custom-engineered prices.

Ideal Applications

1. Truck-Mounted Cranes and Utility Aerial Lifts: The predictable load distributions and constant, multi-directional slewing demands of mobile utility cranes make single-row configurations the industry standard for stable lifting operations.

2. Water Treatment Clarifiers and Thickeners: These large-diameter, slow-moving processing mechanisms require reliable, corrosion-resistant, low-torque rotation over long continuous cycles, conditions where single-row ball assemblies perform exceptionally well.

3. Agricultural Machinery and Forestry Attachments: Equipment such as grain grain-handling systems, timber harvesters, and specialized rotary plows utilize these bearings to manage rugged outdoor environments where cost-efficiency and reliable debris exclusion are key priorities.

Why Use Single Row Ball Bearings?

Choosing a single-row ball configuration is often driven by the need to balance cost, performance, and tolerance to real-world structural imperfections. In many industrial settings, mounting surfaces cannot be machined to extreme flat tolerances due to welding distortions or cost constraints. Single-row ball designs adapt well to these slight imperfections, distributing loads evenly without experiencing local stress concentrations that could lead to premature spalling or rolling element fracturing.

Additionally, when the primary engineering goal is minimizing energy consumption or utilizing lower-powered drive motors, the lower frictional baseline of spherical elements becomes an important asset. Their ability to deliver predictable performance under combined axial and moment loads—while remaining simple to install, lubricate, and service—makes them an excellent baseline option for standard and medium-duty heavy industrial applications.

Cross Roller Slewing Ring Bearings

Cross roller slewing ring bearings utilize a single row of cylindrical rollers arranged in an alternating, orthogonal V-groove configuration to deliver exceptional structural stiffness, near-zero radial clearance, and linear contact profiles designed for high-load and precision-critical applications.

Structure & Design

The fundamental internal architecture of a cross roller mechanism involves replacing spherical balls with precision-ground cylindrical rolling elements. These rollers are placed in a single deep V-shaped raceway groove, with each successive roller oriented at a 90-degree angle relative to the one preceding it. This alternating arrangement means half of the rollers are angled to absorb axial thrust and overturning moments in one direction, while the remaining half are oriented to manage identical forces in the opposite direction, while simultaneously sharing all radial forces across the entire roller complement.

Because cylindrical rollers form a continuous line of contact along the flat faces of the V-groove raceway, rather than a single point of contact, the area over which forces are distributed is significantly larger. This linear contact pattern prevents localized elastic deformation under load, resulting in an exceptionally rigid system that minimizes structural deflection and axial play. The internal clearances are frequently configured with a slight preload or zero-play specification, making this bearing type highly effective for applications where even a fraction of a millimeter of tilt or wobble could compromise mechanical precision.

The manufacturing tolerances for cross roller configurations are necessarily strict, requiring precise geometric control over the V-groove angles, roller diameters, and ring parallelism. The rollers are separated from one another using individual synthetic spacers or specialized linear guides to prevent counter-rotational friction at the contact points. Like ball bearings, cross roller systems can be engineered with internal or external gear teeth, but they require a much stiffer mounting foundation to ensure the precision-machined rolling pathways are not distorted during heavy-duty bolted installation.

Advantages

1. Exceptional Structural Stiffness and Rigidity: The line-contact profile of the cylindrical rollers significantly reduces elastic deformation under heavy loads, ensuring the bearing maintains precise leveling and minimal angular deflection under variable overturning moments.

2. High Load Capacity Within Compact Dimensions: Because line contact distributes forces over a larger surface area, a cross roller unit can support significantly higher radial and moment loads than a single-row ball bearing of identical physical dimensions.

3. Precise Positioning and Minimal Backlash: The ability to configure these bearings with zero clearance or controlled internal preloads makes them ideal for high-precision positioning systems where axial and radial runout must be kept to an absolute minimum.

Ideal Applications

1. Industrial Robotic Arms and Precision Manipulators: Multi-axis articulated robots require extreme positioning repeatability and high rigidity at their base joints to accurately manipulate tools and payloads without hunting or oscillating.

2. High-Precision CNC Machine Tool Tables: Rotary milling heads, indexing tables, and heavy-duty turning centers rely on cross roller bearings to resist cutting forces and maintain tight machining tolerances during complex profiling operations.

3. Medical Imaging Equipment and Radar Scanners: Advanced CT scanners, MRI gantries, and military satellite dish positioners use cross roller configurations to achieve smooth, vibration-free rotation with tight control over axial and radial runout.

Why Use Cross Roller Bearings?

A cross roller configuration is typically selected when system specifications require high structural rigidity and strict control over geometric runout. When a machine must operate under highly dynamic, reversing loads, or when an overhung payload creates severe tilting moments, any internal clearance or flexibility within the main bearing can cause system-wide resonance, vibration, or position errors. The line-contact design of cross roller systems provides the necessary stiffness to absorb these forces cleanly.

Furthermore, these bearings allow engineers to save space and reduce weight without sacrificing load capacity. When a design has strict envelope restrictions but must still support substantial structural forces, a cross roller unit can replace larger, multi-row ball bearing systems. This capability simplifies surrounding housings and reduces the overall footprint of the rotating machinery.

Comparison Summary

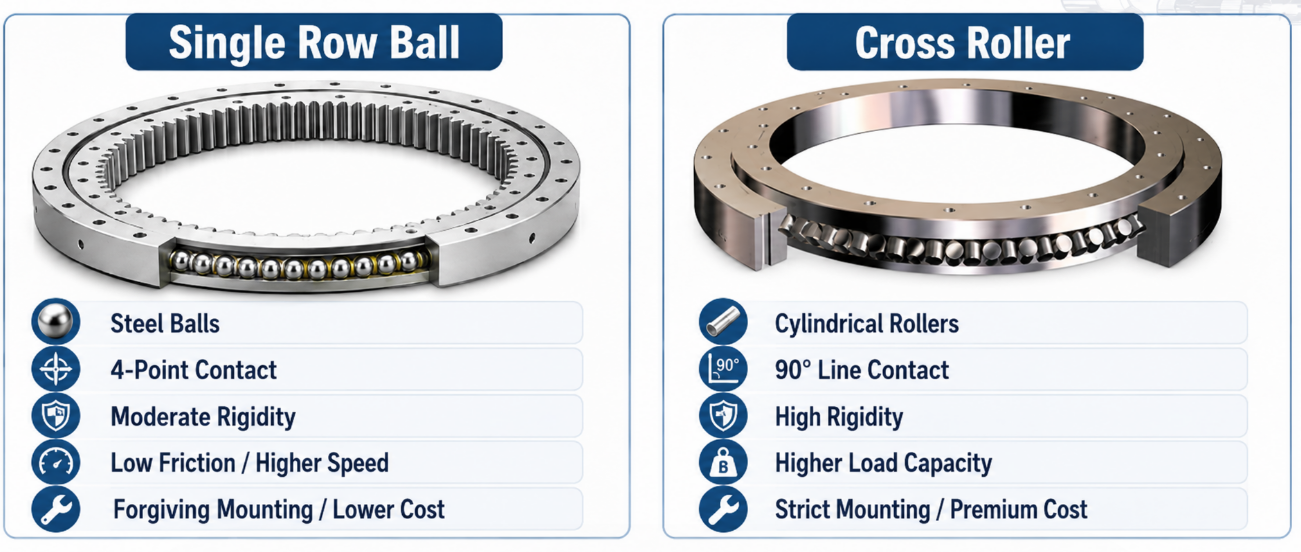

To assist engineering and procurement teams in selecting the optimal slewing ring architecture for specific project requirements, the following technical matrix provides a direct, head-to-head comparison of key performance metrics, structural parameters, and cost factors.

When choosing between these two highly reliable bearing systems, engineers should evaluate the specific priorities of their application. If the project requires cost-efficient performance, smooth rotation at moderate speeds, and tolerance for real-world structural deflection, standard single-row ball configurations offer an excellent, dependable solution. For projects requiring long-term durability and high load tolerance, integrating specialized durable single-row ball slewing rings provides a reliable foundation that handles combined forces without driving up manufacturing costs.

Conversely, when the application demands extreme structural stiffness, high weight capacity within a compact footprint, and precise control over axial deflection, the cross roller slewing ring is the clear technical choice. By aligning the unique contact geometry of the bearing with the structural demands, load profiles, and precision requirements of the machinery, design engineers can ensure long-term reliability, optimized performance, and excellent operational safety for their heavy-duty rotational systems.
