Single-Row Ball Slewing Bearings represent the definitive mechanical solution for managing complex, simultaneous structural loads through a streamlined, single-layer rolling element design that optimizes both spatial efficiency and operational durability.

By integrating internal advanced geometric designs with robust manufacturing processes, these specialized components bridge the gap between heavy-duty structural connection and smooth rotational motion. Understanding the nuanced engineering principles, load dynamics, and application criteria of these systems allows industrial operators to significantly maximize machine uptime, reduce maintenance overhead, and enhance overall system positioning accuracy. The following analysis provides a thorough investigation into the technical mechanics, structural features, and industrial applications of these highly versatile mechanical assemblies.

What is a single row ball slewing bearing?

A single row ball slewing bearing is a large-scale, low-speed rotational component comprising an inner ring, an outer ring, a single layer of precision steel balls, and a specialized cage assembly designed to transmit complex combinations of structural loads simultaneously.

Structurally, this component functions as an integrated connection joint that allows one part of a machine to rotate relative to another while maintaining high rigidity. Unlike standard deep groove ball designs, these systems feature high-strength forged rings and integrated mounting holes across both the inner and outer circumferences. This specialized construction eliminates the need for external bearing housings or retaining shafts, allowing the component to bolt directly onto flat machined mounting surfaces within heavy machinery.

The internal rolling elements consist of high-precision steel balls separated by individual spacers or continuous polymer cages. This arrangement prevents ball-to-ball friction, ensures uniform distribution of lubricants, and minimizes rotational torque resistance during slow, heavily loaded movements. The structural configuration can be ordered with induction-hardened internal gear teeth, external gear teeth, or gearless smooth surfaces depending on the driving mechanism of the application.

Furthermore, integrated synthetic rubber seals protect the internal raceways from environmental contaminants like dust, moisture, and debris while retaining vital lubricating grease. This comprehensive structural composition makes Single-Row Ball Slewing Bearings an incredibly dependable and self-contained mechanical module for industrial heavy-duty rotation projects.

The Ingenious Four-Point Contact Design

The four-point contact design is a sophisticated internal geometry where each precision steel ball contacts the upper and lower Gothic-arch raceways at four distinct points, allowing a single row of rolling elements to handle multi-directional loads.

This specific internal geometry uses a unique Gothic-arch profile for both the inner and outer ring raceways. Instead of a standard circular radius, the raceway is composed of two intersecting curves that form a central peak. When the precision steel balls are nested within this configuration, they establish contact at two points on the inner ring and two points on the outer ring under optimal balanced conditions. This four-way contact structure forms an X-shaped load path across the internal cross-section of the bearing.

The primary benefit of this design is its incredible efficiency in distributing diverse mechanical forces without causing structural distortion or localized stress concentration. When an axial or radial force hits the assembly, the contact angle adapts to transfer the energy cleanly across the raceways. This unique internal configuration eliminates the need for dual-row or multi-row bearing configurations, minimizing overall weight, material usage, and manufacturing complexity.

Additionally, the four-point configuration provides excellent resistance against friction-induced wear during continuous oscillatory or rotational motions. The geometric precision ensures that even under varying force angles, the structural contact points maintain an optimal balance between rolling resistance and load capacity. This architectural ingenuity is what gives the compact design its high stiffness and exceptional tracking accuracy.

Versatility in Load Handling

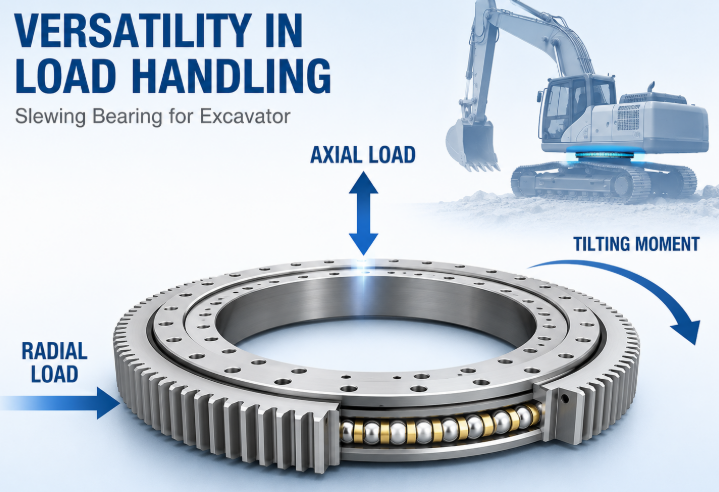

The versatility in load handling stems from the bearing's capability to simultaneously support massive axial forces, radial forces, and tilting moment loads within a single, highly integrated low-profile envelope.

       Vertical Axial Forces (Downward/Upward Weight)
                     │
                     ▼
  ┌─────────────────────────────────────┐
  │      Outer Ring / Inner Ring        │◄─── Radial Forces
  │  (Gothic-Arch Raceway Configuration) │     (Horizontal Thrust)
  └─────────────────────────────────────┘
                     ▲
                     │
       Tilting Moment Loads (Overturning Forces)

Industrial applications subject rotating structures to highly complex, dynamic forces that arrive from multiple directions at once. Radial forces act perpendicular to the rotational shaft, trying to push the mechanism horizontally out of alignment. Axial forces exert vertical downward or upward pressure parallel to the rotational center, representing the dead weight of the upper machinery and its payload. The most challenging forces are tilting moment loads, which create an overturning torque that tries to tip the rotating platform over.

The specialized internal configuration handles these forces by transforming them into predictable vector lines that pass straight through the internal steel balls. The high contact angle inherent in the design ensures that vertical forces are spread evenly across the circumference, while horizontal shifting is strictly restricted by the deep raceway walls. This continuous multi-axis load transmission provides exceptional dynamic stability during complex mechanical maneuvers.

By checking the technical performance limits of these configurations, engineers can replace multi-bearing arrangements with a single, comprehensive solution. This reduction in component count simplifies structural load calculations and prevents the stacking of tolerances that often leads to premature mechanical wear. The versatile load profile ensures structural integrity across unpredictable heavy-lifting operations.

Here are some key features of single row ball slewing bearings

The key features of single row ball slewing bearings include integrated structural mounting holes, induction-hardened Gothic-arch raceways, customizable internal or external gear integration, and robust environmental sealing systems.

High Strength Forged Steel Construction

The structural rings are manufactured from premium-grade medium carbon steels or alloy steels such as 50Mn or 42CrMo. These materials undergo rigorous forging processes to refine their internal grain structures, enhancing overall tensile strength, impact toughness, and fatigue resistance under high structural stress.

Induction Hardened Raceways

To prevent surface deformation and subsurface fatigue, the internal raceways undergo specialized localized induction hardening. This creates a hard, wear-resistant surface layer with a hardness rating typically ranging between 55 to 62 HRC, while leaving the core of the ring ductile enough to absorb sudden impact shocks.

Precision Integrated Gearing

The components can be machined with internal or external spur gears that are seamlessly integrated into either the inner or outer ring structure. These gears can also be induction hardened to withstand high driving torques, eliminating the need for bolt-on drive gears and lowering assembly time.

Comprehensive Technical Specifications

To help compare standard industrial configurations, the table below outlines the core technical metrics found across this versatile product family:

Optimized Structural Attachment Holes

Both the inner and outer rings feature pre-drilled, uniformly spaced clearance or tapped holes that facilitate quick, precise attachment to connecting frameworks. This direct-bolting design maximizes overall rigidity, prevents structural shifting, and streamlines routine maintenance inspections.

What are single row ball bearings used for?

Single row ball bearings are used for providing smooth rotational guidance, transferring intense mechanical forces, and acting as the central structural pivot point between stationary and rotating sub-assemblies in heavy industrial machinery.

In mechanical design, these components act as a dual-purpose solution that provides both structural support and precise kinematic guidance. They connect large structural elements—such as a crane's lower chassis and its upper rotating boom—ensuring that the entire weight of the payload is safely supported during rotational positioning maneuvers. This eliminates the need for central columns or massive vertical pivot shafts, freeing up valuable center space for hydraulic lines, electrical wiring, or control linkages.

Furthermore, they are used to convert driving inputs from small pinion motors into controlled, high-torque rotational movement of large platforms. The integrated gearing options ensure that power transmission happens directly at the bearing boundary, maximizing mechanical efficiency and reducing drive backlash. This direct integration optimizes the overall responsiveness of the positioning system.

They also play a critical role in minimizing rotational friction losses during continuous or intermittent cycles. By maintaining clean rolling contact between the steel balls and the hardened raceways, these assemblies lower the energy required to start and sustain rotational positioning. This energy efficiency is vital for battery-powered or remote industrial installations where power availability is restricted.

Applications across Industries

Applications across industries span across construction engineering, renewable energy networks, bulk material handling systems, marine operations, and manufacturing automation where reliable rotational positioning is mandatory.

Construction and Earthmoving Equipment

In the construction sector, these assemblies serve as the primary rotational foundation for hydraulic excavators, truck cranes, crawler cranes, and piling rigs. They withstand severe impact shocks and uneven tilting forces while allowing the cabin and digging boom to achieve continuous 360-degree rotation.

Renewable Wind and Solar Energy

Wind turbines utilize these components as pitch bearings at the base of the blades and yaw bearings at the tower top to optimize aerodynamic capture. Similarly, large-scale solar tracking networks deploy them to rotate massive photovoltaic arrays smoothly, following the sun's trajectory with high precision.

Bulk Material Handling and Mining

Within mining operations, heavy-duty bucket wheel excavators, stacker-reclaimers, port shiploaders, and bulk cargo conveyors rely on these rings to manage immense dead weights and constant vibrations during material shifting operations.

Marine and Offshore Cranes

Marine environments require robust, corrosion-resistant rotation systems for deck cranes, offshore oil rig positioning apparatus, and harbor loading machinery. These bearings use specialized maritime grease and advanced sealing systems to resist continuous saltwater exposure.

Manufacturing and Robotic Automation

Modern production facilities integrate smaller, high-precision versions of these slewing rings into heavy-duty robotic arms, automated welding turntables, and material indexing carousels to achieve smooth, highly repeatable positional accuracy.

Factors Influencing Selection

Factors influencing selection include maximum static and dynamic load vectors, environmental operating temperatures, desired rotational speeds, gearing torque demands, and the structural stiffness of the mounting frame.

Static and Dynamic Load Analysis

The primary step in engineering selection involves calculating the maximum axial, radial, and moment loads the system will encounter under both operating conditions and extreme static survival states. Engineers plot these forces against a certified structural limit curve to ensure an appropriate safety factor is maintained throughout operations.

Drive Mechanism and Gearing Configuration

Selecting between non-geared, internally geared, or externally geared configurations depends on the spatial layout of the drive motor and pinion system. The gear teeth must be calculated to handle maximum acceleration torques and emergency braking forces without risking bending fatigue or tooth shear failure.

Environmental Exposure and Sealing Systems

Operating environments dictate the choice of materials, surface coatings, and sealing technologies. Extreme cold requires specialized low-temperature steels, while desert or marine settings require heavy-duty multi-lip nitrile rubber seals and specialized anti-corrosion platings to preserve the integrity of the internal components.

Summary and Key Takeaways

Single-Row Ball Slewing Bearings stand out as foundational components in modern mechanical engineering, combining streamlined structural design with powerful multi-axis load capacity. Their innovative four-point contact geometry allows a single row of rolling elements to do the work of far more complex assemblies, lowering structural weight, spatial footprints, and overall manufacturing costs. By providing integrated options for mounting holes, hardened raceways, and internal or external gearing, these systems simplify industrial machine design while maximizing power transmission efficiency.

Choosing the right rotational configuration requires a careful analysis of structural forces, environmental challenges, and gearing demands. When precision engineering aligns with top-tier manufacturing standards, these components deliver exceptional reliability, operational smoothness, and prolonged service life across the world's most demanding industrial environments. For further technical specifications and customizable structural design choices, engineering teams can view high-performance industrial options by checking the official catalog for Single-Row Ball Slewing Bearings.
